Innovative retrofit digital mammography solution
Vieworks, an Imaging Expert in radiographic imaging, proudly introduces a Mammography-dedicated retrofit solution of flat panel detectors for two sizes and viewer program, VXvue Mammo, as one solution to upgrade the existing analog and CR system to digital easily.
VIVIX-M 1824S: Small-area Flat Panel Detector for Mammography with High Resolution
VIVIX-M 2430S: Flat Panel Detector for Mammography with High Resolution
With more than tens of thousands of installations completed globally, Vieworks has gained its reputation as an innovator of flat panel detector manufacturer in the general radiography retrofit market.
Via simple connection to the detector and installation of VXvue Mammo on your computer, you are all set to go. You can enjoy all the benefits of moving to digital without costly facility replacement.
Superior image quality with 75μm pixel pitch provides clearer clinical images to assist diagnosis effectively. Moreover, VXvue Mammo maximizes the efficiency of workflow.
Same size as a film or a CR cassette (ISO 4090)
Specially designed to use conventional AEC systems
VXvue Mammo — Viewer program specialized for mammography
Convenient patient positioning
Securing active area easily
The VIVIX-M 2430S features a thin chest wall distance of just 1.9 mm, while the VIVIX-M 1824S offers 2 mm, ensuring optimal coverage of breast tissue during examination.
The TFT (Thin Film Transistor) with IGZO technology provides high reliability and durability in the mammography environment. This technology ensures consistent performance and extended product life even under demanding clinical conditions.
The VXvue Mammo software completes the retrofit solution with specialized tools for mammography diagnosis including nipple detection, density estimation, and customizable image processing parameters. DICOM 3.0 compatibility ensures seamless integration with your existing hospital systems.
Advanced Image Processing by PureImpact™
%20(1).png)
Easy registration to enhance workflow, automatic image processing and labeling of each view position and user-friendly editing functions
PureImpact M™ is a Mammography dedicated post processing algorithm to enhance image quality for an efficient diagnosis.

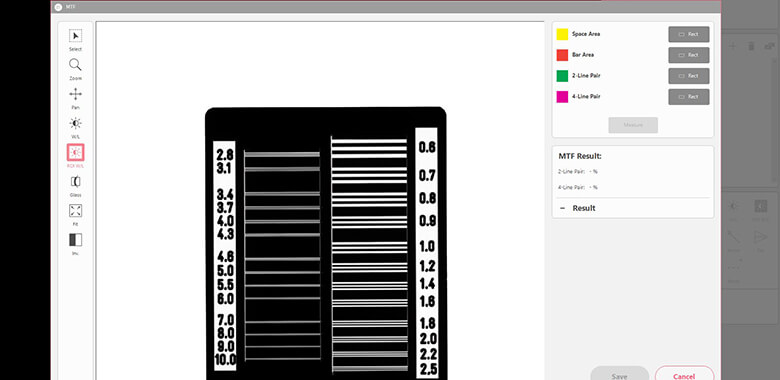

VXvue Mammo supports Five different QC tools of ACR Phantom, Artifact, MTF, Flat Field and Monitor
Center adjustment• Auto rotation• Annotation: Distance, angle and text
1x1, 1x2, 2x2 layout• User-set layout
Modality Worklist (MWL) and Modality Performed Procedure Steps (MPPS)• Storage commitment
Center adjustment• Auto rotation• Annotation: Distance, angle and text
Center adjustment• Auto rotation• Annotation: Distance, angle and text
FXMD-1008S
FXMD-2430S
TFT WITH IGZO
TFT WITH IGZO
CsL:TI
CsL:TI
75 um
75 um
6.7 lp/mm
6.7 lp/mm
3072 x 2304 pixels
3840 x 3072 pixels
16 bit
16 bit
3 s
4 s
15 s
15 s
Gigabit Ethernet (wired) • IEEE802.11n/ac (wireless)
Gigabit Ethernet (wired) • IEEE802.11n/ac (wireless)
Auto trigger: AED mode
Auto trigger: AED mode
26.8 cm x 19.5 cm x 1.5 cm
32.8 cm x 25.5 cm x 1.5 cm
2 mm
1.9 mm
10˚C to 35˚C
30% to 85% RH (Non-condensing)
10˚C to 35˚C
30% to 85% RH (Non-condensing)
DC 24 V, 0.75 A
DC 24 V, 0.75 A
